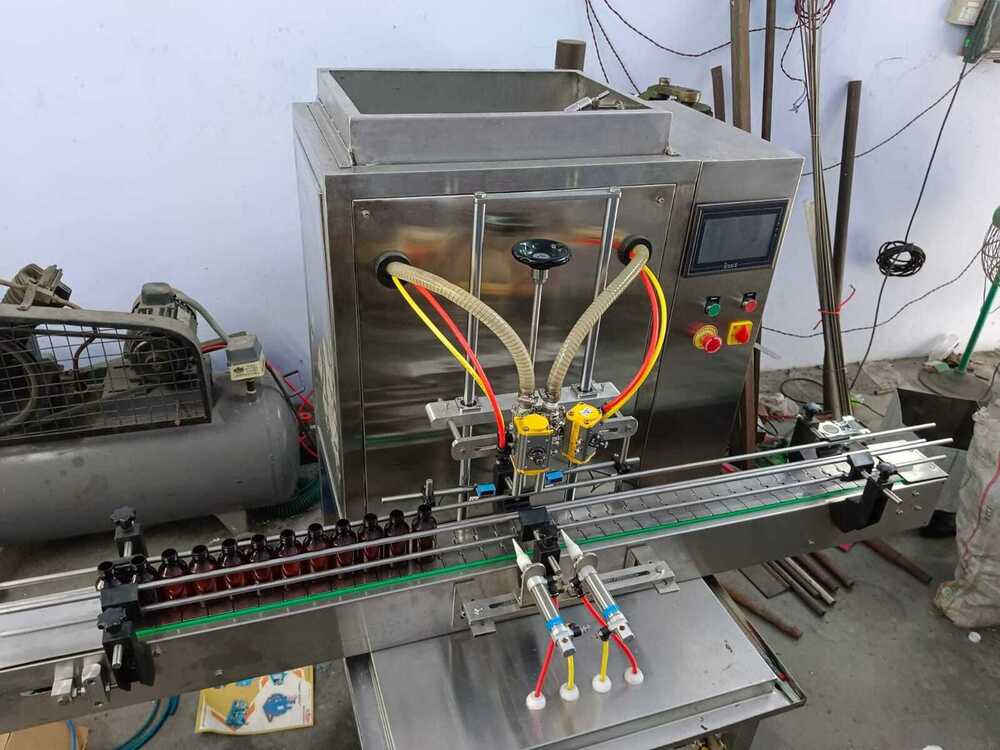

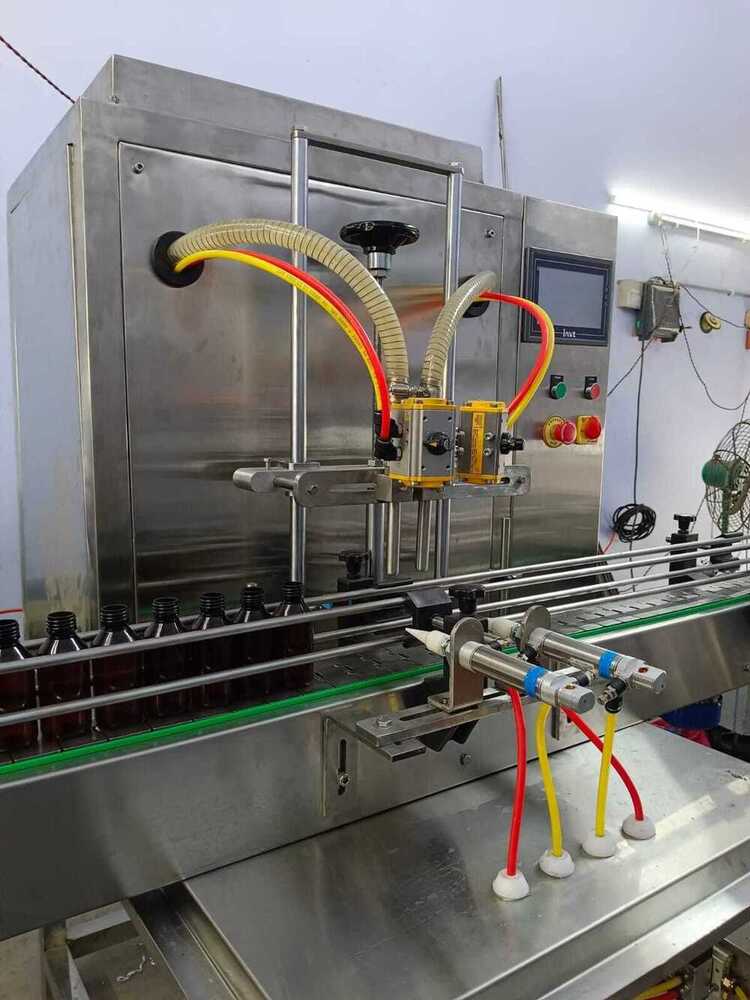

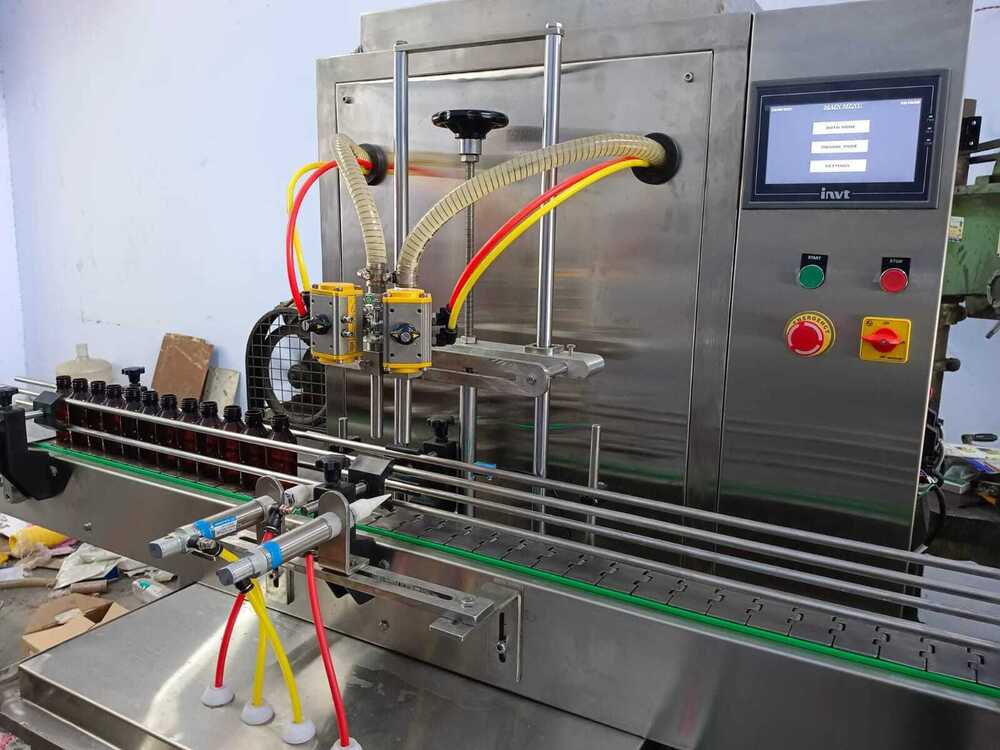

Servo Filling Machine

Specifications

Parameter	Specification
Minimum Order Quantity	2 Units
Delivery Time	7 Days
Production Capacity	500 Pouches / Hour
Automation Grade	Automatic
Model Name / Number	NSY - 1200
Warranty	1 Year
Driven Type	Hydraulic
Nozzle Type	2 Nozzles
Display	7.5-inch Touchscreen HMI
Filling Range	200 ml 1000 ml
Construction Material	Stainless Steel (SS304 / SS316)

The Servo Liquid Filling Machine (Model NSY-1200) is a high-precision, fully automatic system powered by servo motor technology, designed for accurate, consistent, and programmable liquid filling. It is ideal for both low- and high-viscosity liquids, serving applications in the food & beverage, pharmaceutical, cosmetic, and chemical industries.

• Servo Motor-Controlled Filling:
  Each filling nozzle is individually driven by a servo motor, ensuring precise volume control, repeatability, and fast changeover.

• High Fill Accuracy:
  Delivers dosing accuracy within 0.5% or better, even for viscous or foamy liquids.

• Touchscreen HMI & PLC Interface:
  User-friendly interface for setting fill volumes, speeds, and product recipes enabling easy recall and minimal operator training.

• Flexible Filling Range:
  Programmable for varied container sizes and volumes without mechanical adjustments.

• No-Drip & Diving Nozzles (Optional):
  Prevents spillage and ensures clean filling, especially suitable for foamy or sticky liquids.

• Hygienic Stainless-Steel Construction:
  Built from SS304/SS316, compliant with GMP, FDA, and CIP/SIP standards.

• No Bottle No Fill System:
  Advanced sensors prevent filling when bottles are missing or misaligned.

• Modular Expandable Design:
  Scalable to 2, 4, 6, 8 or more heads for higher production capacities.
